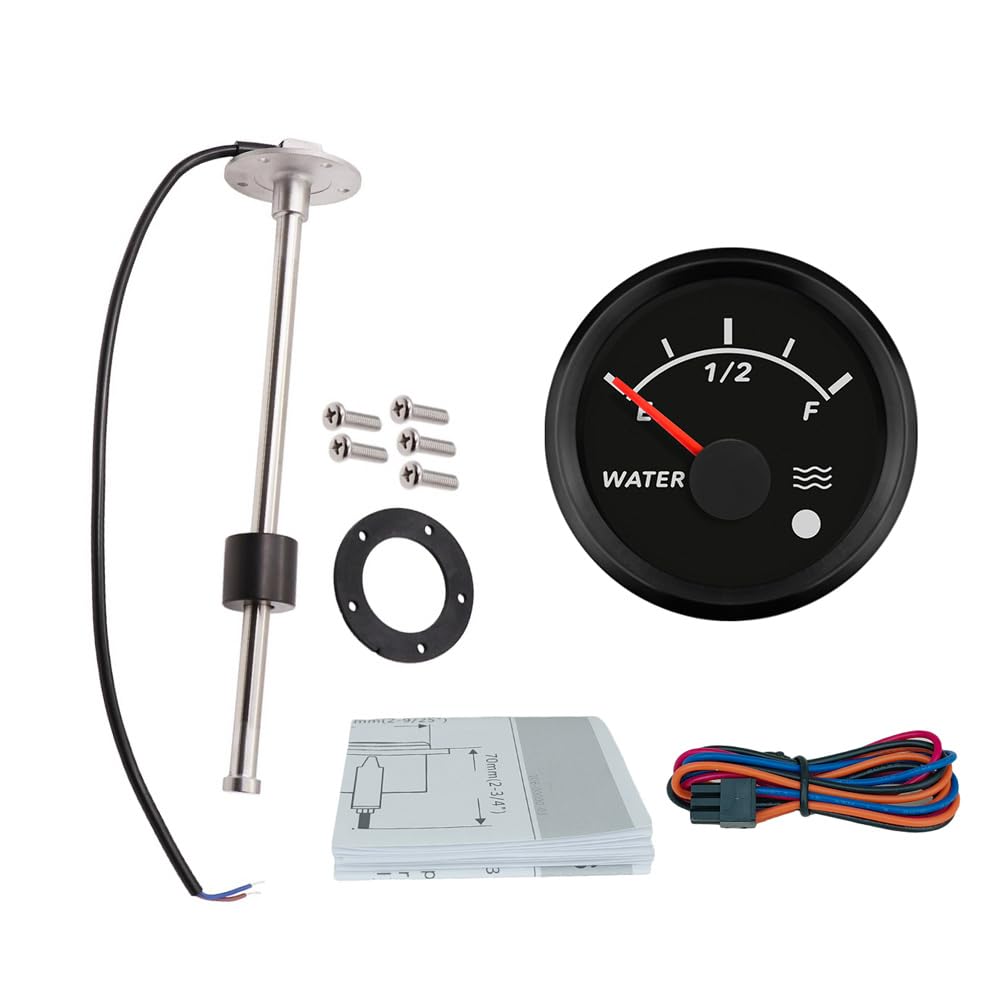

ELING Sending Unit 250mm Sender 0-190ohm Signal 5-Hole Assembly Water Level Tank Gauge 52mm (2'') with 8 Colors Backlights Alarm for Car Yachts RV

Water Level Gauge Product Features: -Be suitable for all kinds of water level sensors with same signal, and display liquid level of the water tank. -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration. -IP67 waterproof and dustproof grade -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc. -With curved glass (with anti-fogging function) -With ultra-wide working voltage design (long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)). Technical Data: -Fixing dimension: 52mm(2") -Indicating Range: E-1/2-F-Signal: 0-190ohm 240-33ohm -Alarm: Water Level≤1/8 -Working Voltage: 9-32V(12V/24V) -Backlight: Red Green Blue White Yellow Kelly Orange Purple -Operation mode: LCD display, stepper motor Package Includes: 1x Water Level Gauge 1x Multi-plug socket 1x Installation Instruction Level Sender Product Features: - Suitable for truck, generators/genset, bus and marine field -Widely used in fuel, water, kerosene and chemical tanks -OEM quality, widely used on automotive and marine OEMs -Reed switch, steady output signal -Simple and strong structure , Advanced corrosion resistance -Long using life, anti-vibration,anti-explosion -High quality fuel and water level sensor -Economical level sensing solution, long service lifespan -Without limitation of environment,length can be customized Product Specifications: -Material: SUS316 stainless steel -Length range: 250mm -Assembly: SAE standard 5 holes -Mounting: 5 pieces of M5 screws and 2 mm thick gasket -Rated current for alarm switch: 500mA -Output signal: 0-190ohm -Resolution range: 21mm -Operating temperatures: - 40 to 85°C -Protection rank: IP67Package Includes: 1x Level Sensor 1x Gasket 5x M5 Screws

• Water Level Gauge-Installation Dimension: 52mm(2"), Level Sender Signal: 0-190ohm.
• Water Level Gauge-Indicating range: E-1/2-F, Level Sender Length: 250mm.
• Water Level Gauge-Alarm: Water Level≤1/8, Level Sender Assembly: SAE standard 5 holes.
• Water Level Gauge-Backlight: Red Green Blue White Yellow Kelly Orange Purple, Level Sender Resolution: 21mm.

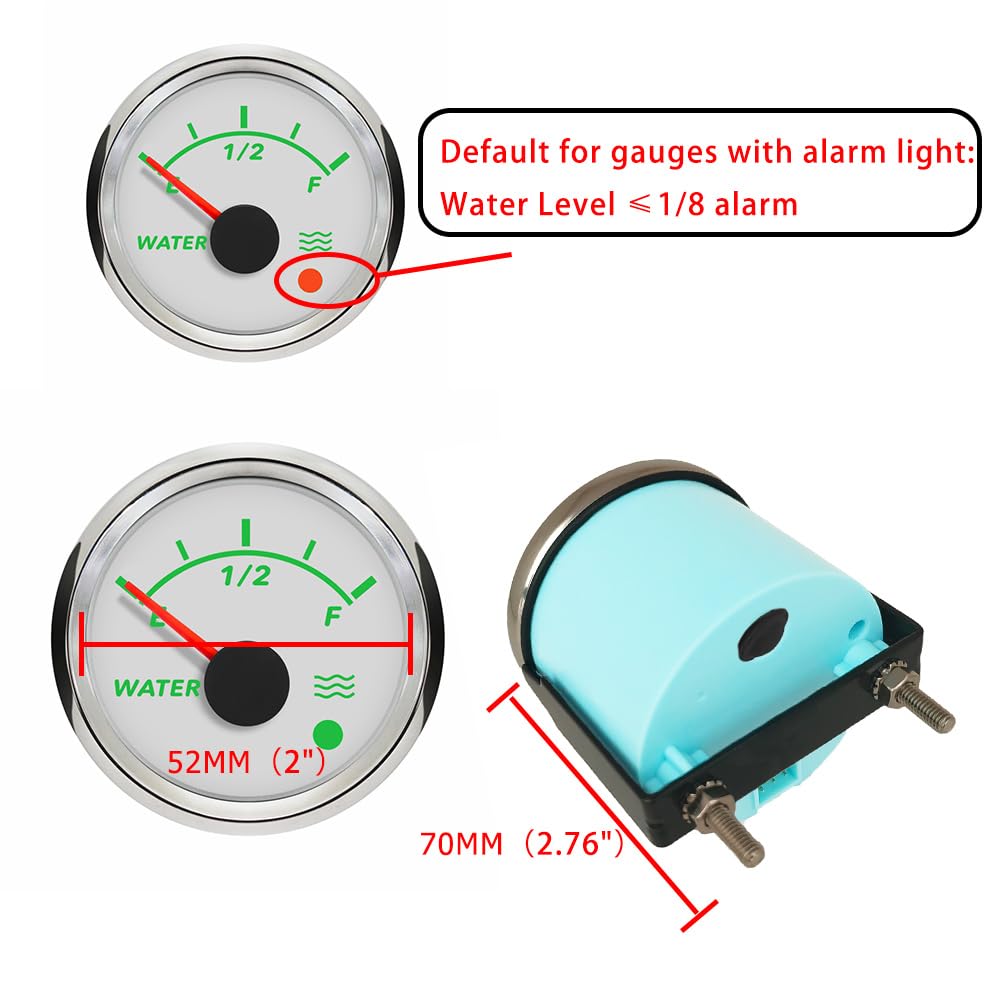

• Level Sender Material: Stainless Steel. Water Level Gauge installation: Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.
